Maintenance-free products for tractors

There are many application areas for high-performance polymers in the agricultural industry. In many tractor applications - the chassis, pedals or driver cabins of agricultural machinery - metallic bushings or recirculating ball bearing guides can be replaced by lubrication-free polymer plain bearings.

The specific advantages are:

  • Maintenance-free and lubrication-free
  • Vibration dampening
  • High mechanical strength
  • Compensation of misalignment and deflections

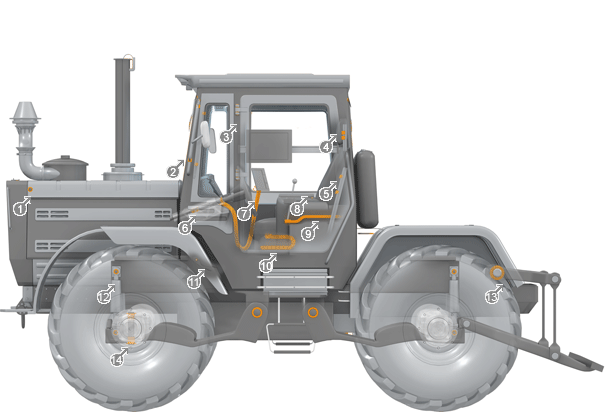

igus products in tractors

1

Engine cover bearing support

iglidur G The all-rounder bearing, tolerates edge loads

2

Mirror adjustment

iglidur J Low coefficient of friction, low wear

3

Door hinge

iglidur G The all-round bearing, suitable for e-coating

4

Monitor adjustment

drylin W Lubrication-free and modular

5

Seat back adjustment

drylin W Lubrication-free and modular

6

Steering column bearing

iglidur J Low coefficient of friction, low wear, low moisture absorption

7

Operating element

3D energy chain triflex

8

Armrest adjustment

drylin N Light, low-profile dry operation

9

Hydraulic valve connection

igubal  double joint Compensation for misalignment, modular system

10

Seat bearing adjustment

E2 e-chain and chainflex cables Strong, quiet and quickly installed

11

Pedal

iglidur J Low coefficient of friction and wear, extremely low tendency to stick-slip

12

Chassis bearing support

iglidur Z For heavy dynamic loads, temperature up to 250°C, extremely media-resistant

13

Power lift

iglidur Q2 Wear-resistant at high loads

14

Stub axle bearing

iglidur P Low total moisture absorption, impervious to impacts and blows

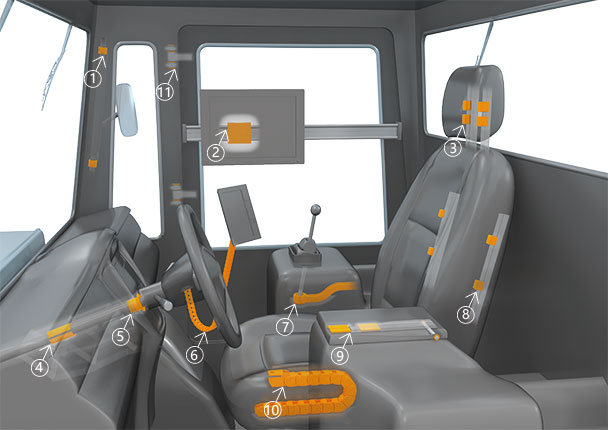

Products for tractor driver cabins



1

iglidur J bearings in mirror adjustment mechanisms

2

Guide carriage drylin W in monitor adjustments

3

drylin W linear guides in backrest adjustment mechanisms

4

iglidur G bearings in steering columns

5

triflex 3D energy chain in control elements

6

igubal double joints in hydraulic valve connections

7

drylin W linear guides in backrest adjustment mechanisms

8

drylin W linear guides in armrest adjustment mechanisms

9

E2 energy chain and chainflex  cables in seat adjustment mechanisms
