drylin® E Linear modules with toothed belt

Linear axes with toothed belt drive are suitable for many positioning and adjustment tasks. Thanks to the lightweight design made of plastic and aluminum, igus linear axes with toothed belt drive are very efficient due to their low mass inertia. Buy our drylin toothed belt axes either as a single system or in portal assemblies. All drylin toothed belt axes can be ordered ready for connection with stepper and DC motors. Selected timing belt drives in standard lengths are immediately available from stock.

List
Tile

Jumlah produk: 24

Baru

drylin ZLX high performance linear module with toothed belt
drylin ZLX high performance linear module with toothed belt
  • Toothed belt axis of the new generation
  • Particularly easy system integration
  • Robust high profile
  • max. stroke length: 3500 mm
  • Including electric motor on request
atas permintaan
Ke halaman produk
Baru

drylin ZLW-0630-B toothed belt double axis with stepper motor
drylin ZLW-0630-B toothed belt double axis with stepper motor
  • Double axis consisting of two toothed belt axles and double shaft motor
  • Axle type: ZLW-0630-02-B-60
  • Motor: MOT-AN-S-060-005-042-L-A-AAAB
  • Motor size: NEMA 17
  • Load: 2 kg*
dari 15.789.200 IDR/Buah
1 item, yang siap dikirim:
1 dalam 10 - 14 hari kerja
Ke halaman produk
Baru

drylin ZLW-0630-S toothed belt double axis with stepper motor
drylin ZLW-0630-S toothed belt double axis with stepper motor
  • Double axis consisting of two toothed belt axles and double shaft motor
  • Axle type: ZLW-0630-02-S-100
  • Motor: MOT-AN-S-060-020-056-L-A-AAAB
  • Motor size: NEMA 23
  • Load: 5 kg*
dari 28.002.800 IDR/Buah
1 item, yang siap dikirim:
1 dalam 10 - 14 hari kerja
Ke halaman produk
Baru

drylin ZLW-1040-B toothed belt double axis with stepper motor
drylin ZLW-1040-B toothed belt double axis with stepper motor
  • Double axis consisting of two toothed belt axles and double shaft motor
  • Axle type: ZLW-1040-02-B-100
  • Motor: MOT-AN-S-060-035-060-L-A-AAAB
  • Motor size: NEMA 24
  • Load: 7 kg*
dari 21.108.080 IDR/Buah
1 item, yang siap dikirim:
1 dalam 10 - 14 hari kerja
Ke halaman produk
Baru

drylin ZLW-1040-S toothed belt double axis with stepper motor
drylin ZLW-1040-S toothed belt double axis with stepper motor
  • Double axis consisting of two toothed belt axles and double shaft motor
  • Axle type: ZLW-1040-02-S-100
  • Motor: MOT-AN-S-060-059-086-L-A-AAAB
  • Motor size: NEMA 34
  • Load: 10 kg*
dari 35.000.000 IDR/Buah
1 item, yang siap dikirim:
1 dalam 10 - 14 hari kerja
Ke halaman produk

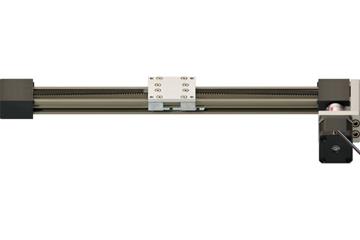

drylin® ZLW-0630 basic with stepper motor
drylin® ZLW-0630 basic with stepper motor
  • Toothed belt drive with steel cable
  • Carriage length: 60mm
  • NEMA17 stepper motor with stranded wire
  • Stroke length: 300
→Configure individual linear module!
dari 11.586.960 IDR/Buah
1 item, yang siap dikirim:
1 dalam 10 - 14 hari kerja
Ke halaman produk

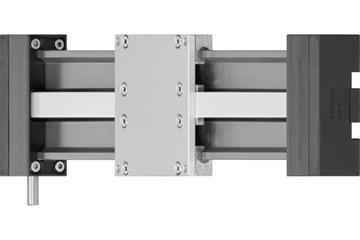

drylin® ZLW-0660S linear axis with toothed belt drive
drylin® ZLW-0660S linear axis with toothed belt drive
  • PU toothed belt with steel cable
  • Carriage length: 100mm
  • Feed rate: 54 mm/rev
  • Installation size: Ø 06
  • Belt tension: 150N
  • Stroke length: 250mm
→Configure individual linear module!
dari 13.111.000 IDR/Buah
Ke halaman produk

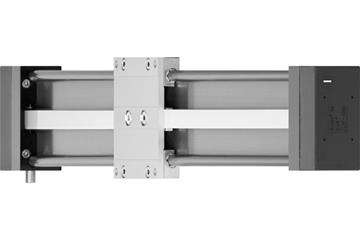

drylin® ZLW-1080S linear axis with toothed belt drive
drylin® ZLW-1080S linear axis with toothed belt drive
  • PU toothed belt with steel cable
  • Carriage length: 100mm
  • Installation size: Ø10
  • Belt tension: 200 N
  • Stroke lengths: 500mm or 1000mm
→  Configure individual linear module!
dari 14.780.080 IDR/Buah
2 item, yang siap dikirim:
1 dalam 10 - 14 hari kerja
Ke halaman produk

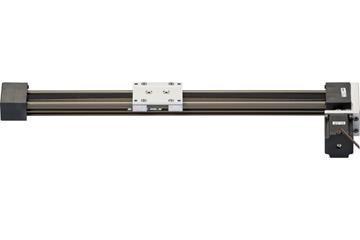

drylin® ZLW-1040 basic with stepper motor
drylin® ZLW-1040 basic with stepper motor
  • Toothed belt drive with steel cable
  • Carriage length: 100mm
  • NEMA23 Motor with stranded wire
  • Stroke length: 500
→Configure individual linear module!
dari 14.457.520 IDR/Buah
1 item, yang siap dikirim:
1 dalam 10 - 14 hari kerja
Ke halaman produk

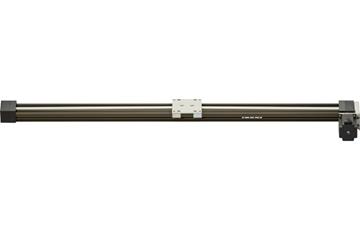

drylin® ZLW-1080 standard with stepper motor
drylin® ZLW-1080 standard with stepper motor
  • Toothed belt drive with steel cable
  • Carriage length: 100 mm
  • NEMA23XL stepper motor with JST connector
  • Stroke length: 1000mm
→Configure individual linear module!
dari 23.872.800 IDR/Buah
1 item, yang siap dikirim:
1 dalam 10 - 14 hari kerja
Ke halaman produk

drylin® ZLN-40 linear module with toothed belt
drylin® ZLN-40 linear module with toothed belt
  • Flat type with 28mm height
  • Vertical load from 30N
  • Carriage length: 50mm
  • Stroke length max. 750mm
→Configure individual linear module!
atas permintaan
Ke halaman produk

drylin® ZLW-0630B linear module with toothed belt
drylin® ZLW-0630B linear module with toothed belt
  • Cost-effective deflection axis consisting of stainless-steel square section and high-performance polymer
  • Neoprene toothed belts with fibre glass reinforcement
  • Carriage length: 60mm
  • Stroke length max. 1,000mm
→Configure individual linear module!
atas permintaan
Ke halaman produk

drylin® ZLW-0660B linear module with toothed belt
drylin® ZLW-0660B linear module with toothed belt
  • One-piece stainless steel deflection
  • Effective PU toothed belt with steel cables
  • Carriage length: 100mm
  • Stroke length max. 1,000mm
→Configure individual linear module!
atas permintaan
Ke halaman produk

drylin® ZLW-1040B linear module with toothed belt
drylin® ZLW-1040B linear module with toothed belt
  • Cost-effective deflection axis consisting of stainless-steel square section and high-performance polymer
  • Neoprene toothed belts with fibre glass reinforcement
  • Carriage length: 100mm
  • Stroke length max. 2,000mm
→Configure individual linear module!
atas permintaan
Ke halaman produk

drylin® ZLW-1040B linear module with toothed belt
drylin® ZLW-1040B linear module with toothed belt
  • One-piece stainless steel deflection
  • Effective PU toothed belt with steel cables
  • Carriage length: 100mm
  • Stroke length max. 2,000mm
→Configure individual linear module!
atas permintaan
Ke halaman produk
