drylin® telescopic rails

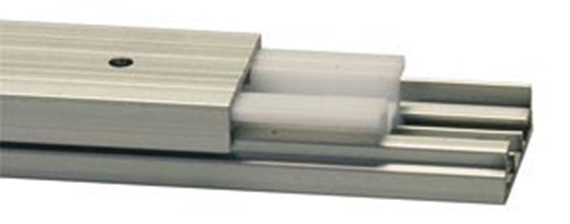

drylin® NT telescopic rails
Completely lubrication-free linear extendables in stroke lengths from 100mm to 600mm. The telescopic rails consists of anodised aluminium guide rails and a sliding block of the tried-and-tested iglidur® material. iglidur tribopolymers enable a dry operation in every application due to their compounded solid lubricants. One benefit of the telescopic rails - in addition to being maintenance-free - is that they can be safely used in clean hygienic environments. No oil or grease can be transferred to other products, clothing or persons. Even applications in cleanroom sluices have already been implemented with the help of telescopic rails. But the dry run also has its advantages in dirty environments. Dirt particles do not get stuck in the guide and are not compacted into a sticky mass. Optionally, all telescopic rails can be delivered with a grid in the start-middle-end position. Requirements by individually positioned indexing positions can be met with telescopic rails.
Features
Robust plastic/aluminium version
Lightweight
Cost-effective
Corrosion-free

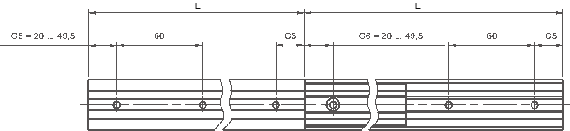

Total extension NT-35-"L"

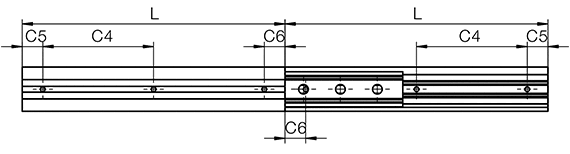

Total extension NT-60-"L"
Over-extension NT-35-"L"-"L+20"

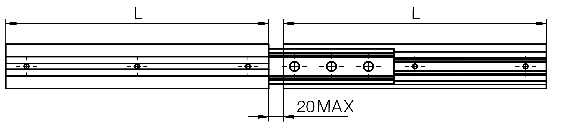

Over-extension NT-60-"L"-"Lmax.+20"

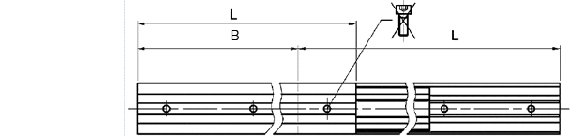

Partial extension NT-35-"L"-"B"

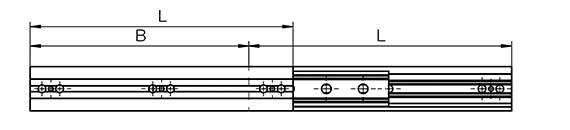

Partial extension NT-60-"L"-"B"
Product range

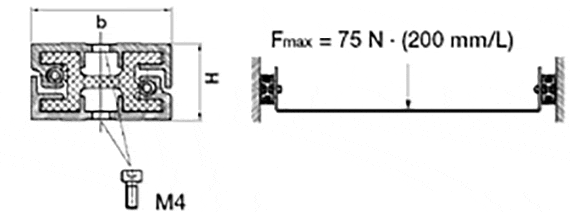

Dimensions [mm]
| part number | b | H | L. min. | L. max. | ||
|---|---|---|---|---|---|---|
| NT-35-150 | 35 | 19 | 150 | 150 | 790.510 IDR | |
| NT-35-200 | 35 | 19 | 200 | 200 | 852.012 IDR | |
| NT-35-300 | 35 | 19 | 300 | 300 | 975.338 IDR | |
| NT-60-200 | 60 | 24 | 200 | 200 | 1.940.050 IDR | |
| NT-60-300 | 60 | 24 | 300 | 300 | 2.307.774 IDR | |
| NT-60-400 | 60 | 24 | 400 | 400 | 2.675.176 IDR | |
| NT-60-AR-200 | 60 | 24 | 200 | 200 | 2.087.204 IDR | |
| NT-60-AR-300 | 60 | 24 | 300 | 300 | 2.528.344 IDR | |
| NT-60-AR-400 | 60 | 24 | 400 | 400 | 2.969.484 IDR | |
| NT-35-AR-150 | 827.540 IDR | |||||
| NT-35-AR-200 | 901.600 IDR | |||||
| NT-35-AR-300 | 1.050.042 IDR | |||||
| NT-60-600 | 3.409.980 IDR | |||||
| NT-60-890 | 4.475.800 IDR | |||||
| NT-60-AR-600 | 3.851.442 IDR | |||||
| NT-60-AR-890 | 5.130.748 IDR | |||||
| NT-35-P-HD | atas permintaan | |||||
| NT-35-P | atas permintaan | |||||
| NT-35-P-AR | atas permintaan | |||||
| NTKA-35 | 68.908 IDR | |||||
| NTKA-60 | 179.032 IDR | |||||
| NTKB-35 | 85.974 IDR | |||||
| NTKB-60 | 220.570 IDR | |||||
| NT-35-4 | atas permintaan | |||||
| NT-35-4-AR | atas permintaan | |||||
| NT-60-4-200 | atas permintaan | |||||
| NT-60-4-300 | 2.406.306 IDR | |||||
| NT-60-4-400 | atas permintaan | |||||
| NT-60-4-600 | 3.508.512 IDR | |||||
| NT-60-4-890 | atas permintaan | |||||
| NT-60-4-200-AR | atas permintaan | |||||
| NT-60-4-300-AR | atas permintaan | |||||
| NT-60-4-400-AR | atas permintaan | |||||
| NT-60-4-600-AR | atas permintaan | |||||
| NT-60-4-890-AR | atas permintaan | |||||
| NT-35-HT-150 | 909.006 IDR | |||||
| NT-35-HT-200 | 979.846 IDR | |||||
| NT-35-HT-300 | 1.122.170 IDR |
Selengkapnya tentang komponen yang dipilih:
Siap dikirim dalam 10 - 14 hari kerja
Waktu pengiriman sesuai permintaan
