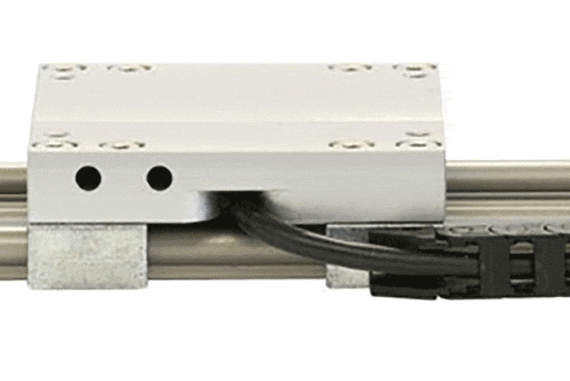

drylin® WKMEX-10-80: Ready-to-install measuring system

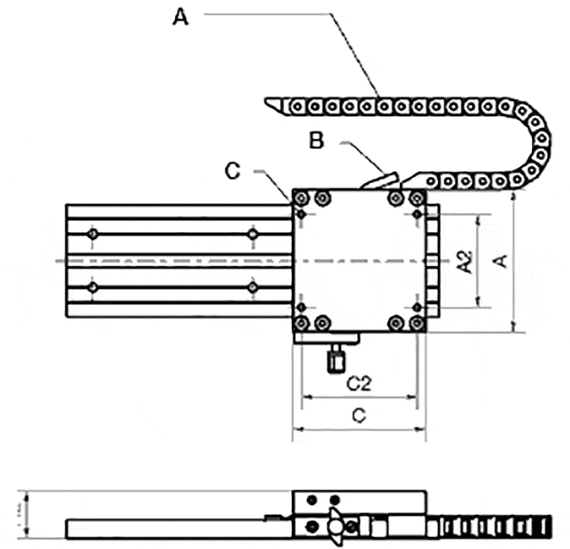

A = energychain 045.10.028.0, not part of the article
B = signal cables
C = K2

Very little installation space taken by the drylin® WKMEX measuring system. The sensor head is integrated into the just 36 mm high carriage. There are three sensor options, two are compatible with TTL Line Driver. An igus® e-chain® 045.10.028.0 is recommended for guiding the signal cable. For length-specific part numbers see:
System E2 micro
System easychain®

Ready-to-install system for external data output

At 4 edge triggering (setting parameters of the display or control system, for example, IW4) and +20 °C ambient temperature: resolution: ±(0.025 + 0.02 · L) L = measurement length in metres; repeatability: ±0.025 mm

At 1 edge triggering (setting parameters of the display or control system, for example, IW1) and +20 °C ambient temperature: resolution: ±(0.1 + 0.02 · L) L = measurement length in metres; repeatability: ±0.025 mm

Small sensor with integrated evaluation electronics

Output signals: differential mode sustained short circuit-proof with inverted signals (A. A/, B, B/, Z, Z/)

Delivery Program measuring device

All types	A	A2	C	C2	H2	K2	Resolution
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
WKMEX-10-80-2.5-00-01	107	70	100	87	36	M6	0,1	atas permintaan
WKMEX-10-80-2.5-01-01	107	70	100	87	36	M6	0,1	atas permintaan
WKMEX-10-80-2.5-11-01	107	70	100	87	36	M6	0,1	atas permintaan

Selengkapnya tentang komponen yang dipilih:

3D-CAD

Permintaan sampel

PDF

Permintaan harga

myCatalog

Sensor type	Nominal voltage	Output power	max. length of signal cable
00	10 - 30 V	10 - 30 V	30 m
01	10 - 30 V	5 V (TTL Line Driver)	50 m
11	5 V	5 V (TTL Line Driver)	10 m

specifications
Measuring principle	Incremental
Repeat accuracy	± 1 increment
Pole division	5 mm
Sensor housing	Zinc die cast
Protection class	IP67
Operating temperature	-10 … +70° C
Max. humidity	95%, non-condensing
Max. speed	4,0 m/s
VDC power supply	5 VDC or 10 to 30 VDC
Current draw	5 VDC: max. 200 mA 10 to 30 VDC: max. 150 mA
Internal evaluation electronics	Internal evaluation electronics
Output power	5 V-TTL line driver or 10 to 30 V_HTL
Source tracks	A, A‘,B, B‘, Z, Z‘
Max. cable length	Max. cable length 5V/5V-TTL = 10 m 10-30V/10-30V = 30 m 10-30V/5V-TTL = 50 m
Max. permissible distance from magnetic tape	2,0 mm
Connection method	Open cable ends
