drylin® N carriage for low profile linear guide system with pretension NW-22-27-60P

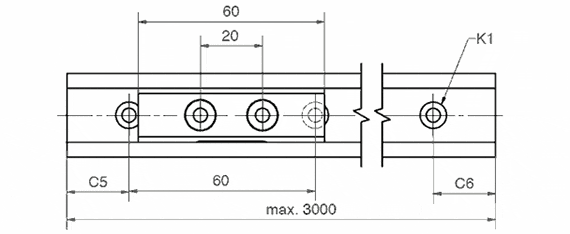

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-27	3000	27	60	0	20	20/49,5	9	1,1	M4	6524	588	290	667.884 IDR
NS-01-27-UNGEBOHRT	3000	27	0	0	0		9	1,1	0	6524	588	290	607.824 IDR
NS-01-27-AR	3000	27	60	0	20	20/49,5	9	1,1	M4	6524	588	290	801.612 IDR

Selengkapnya tentang komponen yang dipilih:

3D-CAD

Permintaan sampel

PDF

Permintaan harga

myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

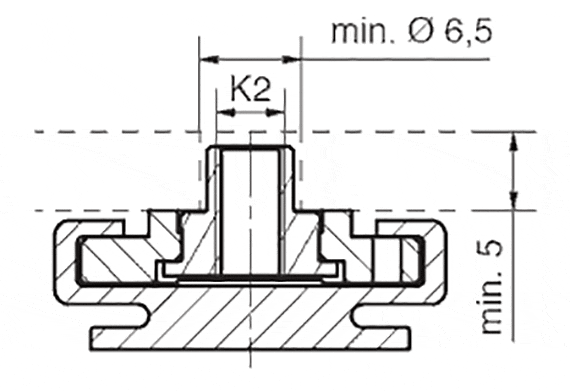

Version 22: Solid polymer carriage with threaded hole

Order no.	Weight of carriage
	[g]
NW-22-27-60-P	12	149.800 IDR

Selengkapnya tentang komponen yang dipilih:

3D-CAD

Permintaan sampel

PDF

Permintaan harga

myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Note:

Detailed information can be found above in the drawings and tables, as well as in the below mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.
