drylin® E stepper motor with connector, NEMA 17

  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: Motor housing IP65 (shaft seal IP52)
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Motor connection: Metric M12 connector

Tidak yakin akan pas?

Download CAD files
Alat konfigurasi teknologi penggerak bermotor

Alat konfigurasi teknologi penggerak bermotor

Di sini Anda dapat merakit linear axis lengkap beserta motor, kabel sambungan, dan alat tambahan hanya dengan beberapa klik.
Keterangan produk
NEMA17: Small, but lots of power

This little motor has impressive torque and high RPMs. Reliable operation with quick movements of low loads.

Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, their precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.

The connector interface provides a high IP65 protection level (IP: International Protection). The higher the IP rating, the better the motor is protected from the ingress of dirt and water.
Data teknis
Aksesori
Unduhan

Solusi lainnya

Jaw coupling with square axis clamp
Jaw coupling with square axis clamp

Vibration dampening and easy fitting

dari 1.158.080 IDR/Buah
Jaw coupling with round axis clamp
Jaw coupling with round axis clamp

Vibration dampening and easy fitting

dari 959.000 IDR/Buah
Motor flange for stepper and DC motors (motor bell)
Motor flange for stepper and DC motors (motor bell)

Matches the drylin® E coupling

dari 917.280 IDR/Buah

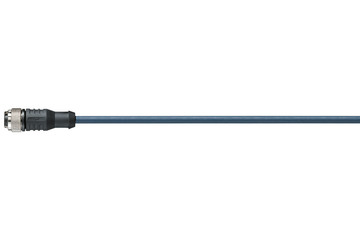

chainflex® Connection cable straight M12 x 1, CF.INI CF9
chainflex® Connection cable straight M12 x 1, CF.INI CF9

Socket at the cable front, cable ends cut

dari 411.488 IDR/Buah

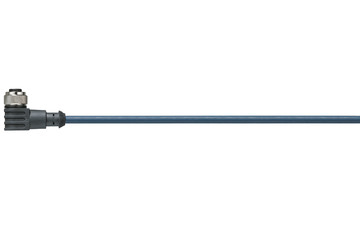

chainflex® Connection cable angled M12 x 1, CF.INI CF9
chainflex® Connection cable angled M12 x 1, CF.INI CF9

Socket at the cable front, cable ends cut

dari 413.840 IDR/Buah
drylin® D1 motor control system for stepper, DC and EC/BLDC motors
drylin® D1 motor control system for stepper, DC and EC/BLDC motors

Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V

atas permintaan

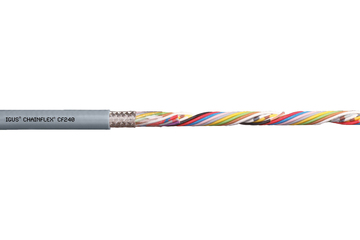

chainflex® CF240 data cable
chainflex® CF240 data cable

For medium duty applications, PVC outer jacket, shielded, oil-resistant and flame-retardant

dari 46.176 IDR/m

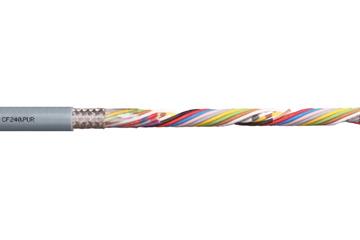

chainflex® CF240.PUR data cable
chainflex® CF240.PUR data cable

For medium duty use, PUR outer jacket, shielded, resistant to oils / coolants, notch-resistant, free of PVC and halogen, flame-retardant, resistant to hydrolysis and microbes

dari 69.160 IDR/m
External braking resistors (power class 50/75/100 W) for EC/BLDC motors
External braking resistors (power class 50/75/100 W) for EC/BLDC motors

NEMA17-34

dari 134.708 IDR/Buah
