drylin® W carriage for curved rail WWB | square | curve bending | manual clamp

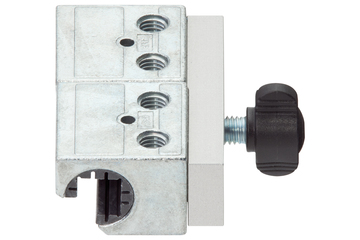

WWB-06-30-06-R175-HKA product image

WWB-06-30-06-R175-HKA technical drawing

1 of 2

WWB-06-30-06-R175-HKA product image

WWB-06-30-06-R175-HKA technical drawing

Design: square
Material sliding element: iglidur I3
With manual clamp
For bending direction: curved bending
Material: Aluminium

Item no.

WWB-06-30-06-R175-HKA

ukuran

06-30

Jari-jari tekuk

R175-R400

ukuran

A [mm]

C [mm]

Introducing the drylin W carriage for curved rail WWB, designed for seamless curved bending. Crafted from durable aluminum, this round carriage features an iglidur I3 sliding element for smooth operation. Ideal for applications requiring manual clamping, it combines functionality with quality, making it a reliable choice for your projects. Elevate your designs with this innovative solution that ensures efficiency and precision in every movement.
