Spherical ball, high-temperature, XKM, mm, igubal®

igubal® spherical ball XKM

Every single iglidur® material has its own special properties, which determine its suitability for specific applications and requirements.
The iglidur® X material offers a combination of high temperature resistance with high compressive strength and chemical resistance.

Material properties

• Temperature resistant from -100 °C to +250 °C in continuous operation
• Universal chemical resistance
• High compressive strength
• Very low moisture absorption
• Excellent wear resistance over the entire temperature range

Typical application areas

• Plant construction
• Model making
• Furniture/Industrial design
• You will find plenty of additional application areas at our Industry solutions



When to use it? If you need maintenance-free materials When dimensional series K components are to be fitted If high compressive strength is required If high flexibility is required

When not to use it? If temperatures are higher than +250 °C If diameters above 10 mm are required If rotation speeds higher than 0.5 m/s are required Use our filter options to find the suitable product

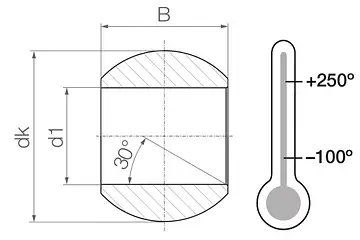

Tolerances

Maintenance-free igubal® spherical balls are designed with a tolerance of the inner diameter of E10. The shaft tolerance should be between h6 and h9. Unless stated otherwise, all tolerance values are treated according to DIN ISO 2768-m
